ESD Tester

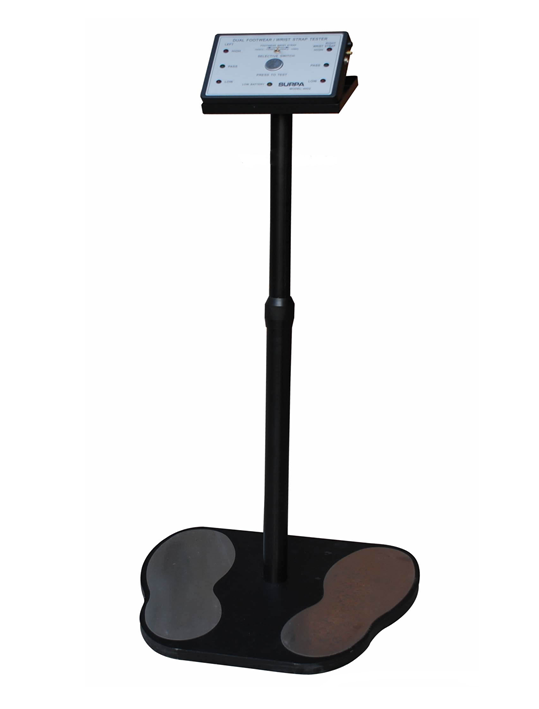

Dual Footwear/Wrist Strap Tester
EC-1505

Description:

This tester can test the volume resistance of ESD wrist strap, both left and right foot strap and footwear.

LED status: HIGH, PASS OR LOW

Standard configured testing range:

FOOT WEAR

WRIST STRAP

ALARM VOICE

HIGH

R100MΩ

R.10MΩ

YES

PASS

R≥750KΩ

R≤100MΩ

R≥750KΩ

R≤10MΩ

NO

LOW

R750KΩ

R750KΩ

YES

LOW BATTERY

Voltage<7VPlease change battery

In addition, it also can meet other upper limit and lower limit values as per national standard (worked out by customer)

Accuracy: +10%

Dimensions of tester: 190*138*34mm

Height of working station(adjustable): 0.6-1.07M24”-42”

Power source: 9V alkali battery

Installation mode: desk-type and suspension-type.
