ESD Instrument

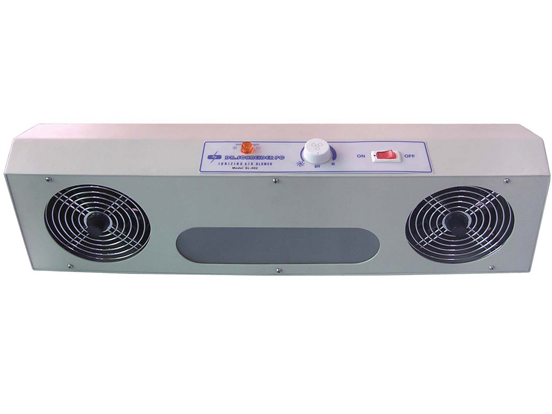

Ionizing Air Blower – Double Fans
EC1602

EC1602  is designed for the neutralization of the static charges which cause some serious problems. High technology used in design can produce more efficient results for static electric problems even in high-speed applications. It provides high performance and efficient ionization with fast discharging time. Blower seperates air molecules to the positive and negative ions by the electric field it generates and transports them.

Specification

Operating Voltage

110V/60HZ OR 220V/50HZ

Current Consumption

0.9A OR 0.4A

Operating Temperature

-1050℃

Size

600mm(L)×90mm(W)×170mm(H)

Weight

7.8Kg

Air Volume

80220CFM

Ion Balance

0V±10V

Air Coverage

40cm×90cm



 Decay Results

Testing Conditions

Test voltage1KV-100V Operating Voltage110/220V Temperature22℃ Test Humidity75%RH

Distance

300mm

300mm

600mm

900mm

Left 300mm

1.3s

2.4s

2.8s

3.9s

Center

2.8s

1.7s

3.2s

4.1s

Right 300mm

1.2s

2.1s

     3.0s

3.6s
