ESD Instrument

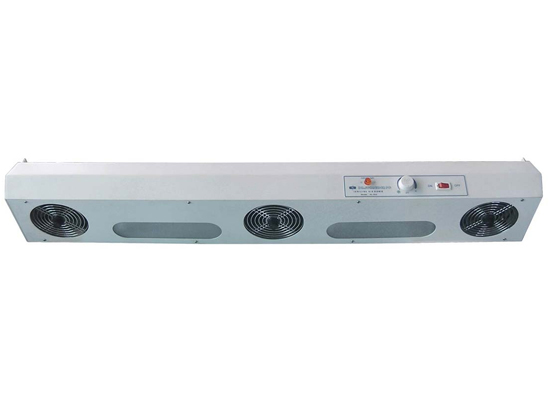

Ionizing Air Blower – Three Fans
EC1603

EC1603 is designed for the neutralization of the static charges which cause some serious problems. High technology used in design can produce more efficient results for static electric problems even in high-speed applications. It provides high performance and efficient ionization with fast discharging time. Blower seperates air molecules to the positive and negative ions by the electric field it generates and transports them.



Operating Voltage

110V/60HZ OR 220V/50HZ

Current Consumption

1.25A OR 0.62A

Operating Temperature

-1050℃

Size

1100mm(L)×184mm(W)×110mm(H)

Weight

12.8Kg

Air Volume

120330CFM

Ion Balance

0V±10V

Air Coverage

40cm×120cm

Decay Results

Testing Conditions

Test voltage1KV-100V Operating Voltage110/220V Temperature22 Test Humidity75%RH

Distance

300mm

600mm

900mm

1200mm

Left300mm

1.9s

2.5s

5.1s

8.6s

Center

1.3s

2.3s

4.3s

8.3s
