ESD Instrument

Ionizing Air Gun
EC1604

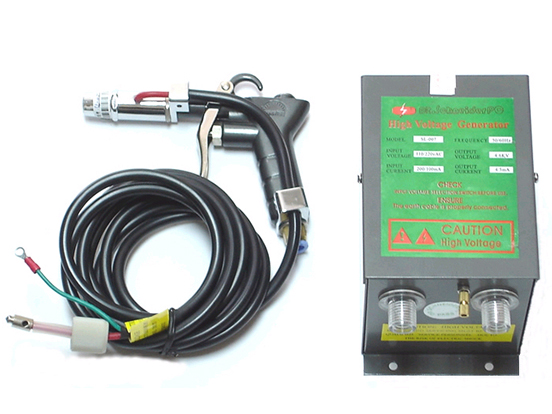

EC1604  is a hand-hold air gun designed to neutralize the static charges and removing dust particles from the surfaces in the industrial applications. High technology used in design can produce more efficient results for static electric problems even in high-speed applications.

It provides high performance and efficient ionization with fast discharging time. Gun seperates air molecules to positive and negative ions by the electric field it generates and transports them.


Specification

Operating Voltage

4.6KV

Current Consumption

200uA

Operating Temperature

-1050

Weight

0.55Kg

HV Cable length

3 Meters

Air pressure

57Kg

Air velocity

>10m/sec

Decay Results

Testing Conditions

Test voltage5KV-500V Operating Voltage4.6KV Temperature22

Distance

30mm

90mm

150mm

Decay time

Positive

0.1s

0.4s

0.7s
