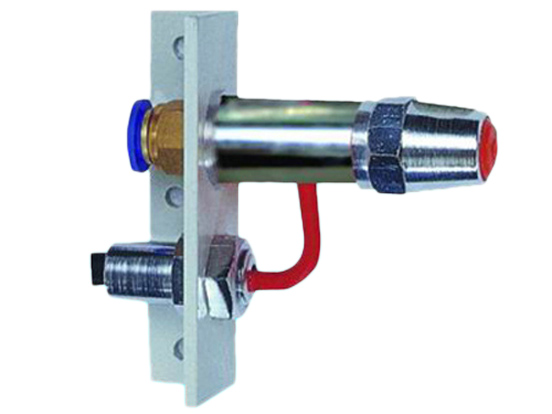

Ionizing Air Nozzle
EC1605

EC1605 produces a high-velocity ionized air flow which simultaneously cleans and neutralises static charges on parts and materials. The nozzles operate on compressed air and provide a pinpoint ionized air source for being used in critical cleaning and/or static neutralising. Nozzles can be fitted and installed in many configurations to meet specific requirements

Specification

Operating Voltage

4.6KV

Current Consumption

200uA

Operating Temperature

-1050

Weight

0.42Kg

HV Cable length

2 Meters

Air pressure

57Kg

Air velocity

10m/sec

 Decay Results

Testing Conditions

Test voltage5KV-500V Operating Voltage

4.6KV Temperature22

Distance

30mm

90mm

150mm

Decay time

Positive

0.1s

0.4s

0.8s

Negative

0.1s

0.3s

0.7s
