ESD Shielding Bag & Film
EC1001



 EC1001-1

EC1001-2

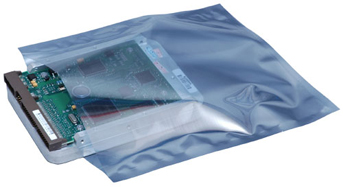

This transparent, metallized static shield bag provides a static safe environment for sensitive electronic

devices. Four layer construction. Polyester dielectric and metal layer provide Faraday effect shielding

of ESD and fields. Tribocharging is minimized by the specially processed polyethylene. Flat and zipper

closure styles.

Specification:

Electrical Properties

Typical Values

Surface Resistivity / Resistance

ASTM D257                                   or    ANSI/ESD STM11.11

Interior

<10^12 ohms/square                 or    <10^11 ohms

Exterior

<10^12 ohms/square                 or    <10^11 ohms

Metal

100 ohms

Static Shielding

<30 volts                                        MIL-PRF-81705, EIA 541

Static Shielding

<10 nj                                              EOS/ESD S11.31

Static Decay

<0.05 seconds                              MIL-PRF-81705

                                                          FTMS 101 MTH 4046

Charge Generation

Teflon

0.09 nC/sq.in                                  Modified Inclined Plane

Quartz

0.01 nC/sq.in

Physical Properties

Tensile Strength

>25 lbs                                             ASTM D 882

Seam Strength

Pass                                                 MIL-PRF-81705

Light Transmission

40 %                                                  Tobias

Heat Sealing Conditions

Temperature

250 F375 F

Time

0.5 – 3.5 seconds

Pressure

30 – 70 PSI
